Product Installation
Post Mount using 3 1/2" OD steel galvanized
schd. 40 Pipe.
|
|
|
|
|
1. Stolen Bus Bar and downlead.
|
2. Dig hole 3" below frost line.
|
 |
|
|
|
|
|
|

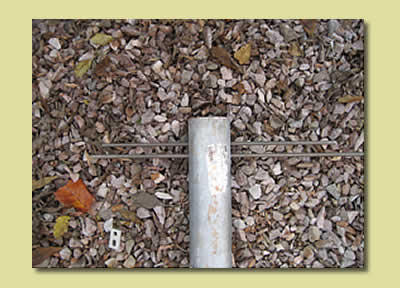

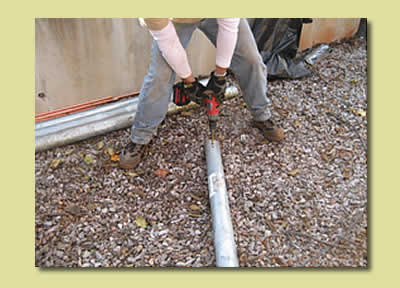

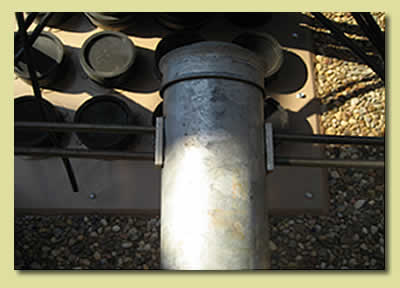

3. Prepare post with holes for BarNone.
|
4. Check hole alignment.
|
 |
|
|
|
|
5. Install concrete to secure post with
a 3" fill
around post 6" below
finished grade.
|
6. View

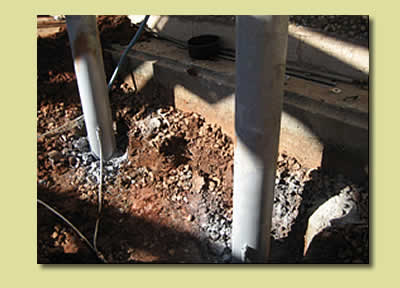

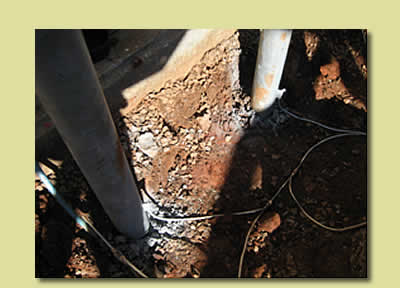

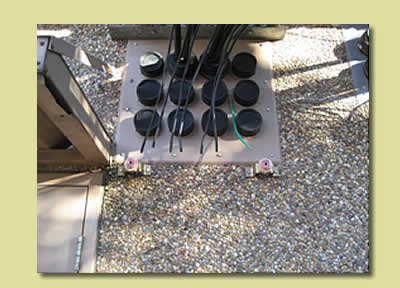

of Grounding. Exothermic connections
to post
and
ground ring. Cold galvanized
on post connection.
|
|
|
|
|
 |
|
|
|
|

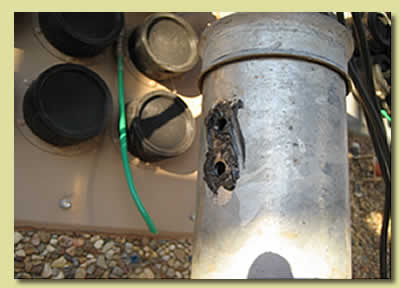

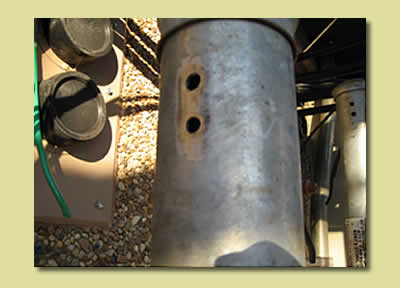

7. Lightly dress surface
|
8. Install anti oxide to surface.
|
 |
|
|
|
|
9. Install BarNone Pipe starter.
|

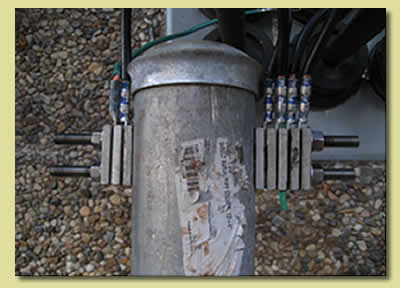

10. Install Lug- Spacer-Lug- Spacer using
anti-oxide
between Spacer Lug.
|
|
|
|
|
|
|
|
|
|
|
11. End
with stainless steel flat washer; stainless steel Belleville washer
stainless steel Nut:
on each side and tighten. (not
shown: Nylon Acorn Nuts on all thread ends.)
|

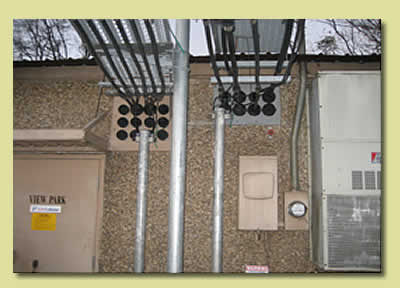

12. Project complete
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
